Exhibit at SID Vehicle Display Detroit

Bando Chemical Industries, Ltd (Kobe, Japan) will be exhibiting at SID Vehicle Display Detroit at Burton Manor Conference Center, Livonia, MI, (U.S.A.) Sep. 26-27, 2017. At this exhibition, we will introduce and demonstrate our Poly-Urethane base super thick OCA which improved the difficulties of conventional OCA when used for Direct-bonding^{※１ .}

※1 Direct-bonding is a process of laminating Cover glass and LC display by Optical Clear Adhesives (OCA) for better visibility, and higher durability even for outside use.

SID Vehicle Display DetroitBooth：Table 70

Held in Detroit, USA on Sep. 26-27, 2017 　　http://vehicledisplay.org/

※Society for Information Display is comprised of the top scientists, engineers, corporate researchers, and business people of the display industry. This event is an automotive display exhibition.

＜Exhibits＞

・Super thick optical clear adhesive（OCA）
This OCA improved the difficulties of conventional OCA when used for direct bonding especially for Lamination on the displays with bezel and Lamination of Curved cover plate.

＜Exhibits detail＞

・For more information about exhibits, please take a look at the following Abstract.

Polyurethane OCA provides new solutions
for direct bonding

[ June 23, 2017, by Yuki Yabuta, BANDO CHEMICAL INDUSTRIES, Ltd. Japan, yuki.yabuta@bandogrp.com ]

Summary

1. BANDO’s Polyurethane OCA provides new solution for direct bonding. It overcomes various challenges where existing materials such as Acrylic and Silicone have been struggling to address, typically bonding “on displays with bezel” and “on curved cover plate”.

2. BANDO produces very thick OCA up to 2 mm, which is soft enough to transform its shape to fit into the gap and level difference caused by a bezel. It is soft enough to absorb the difference of thermal expansion between glass and plastic cover plate, which are often used for curved display.

3. After thermal curing, adhesion becomes strong enough to suppress the outgas from the plastic.

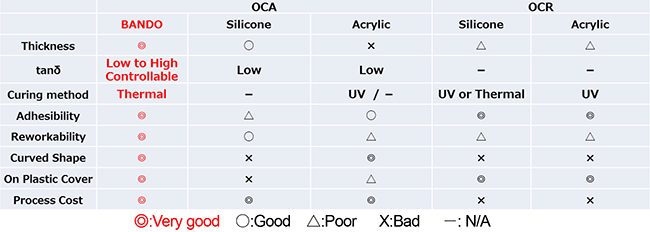

Comparison of key features among different bonding materials (OCA, OCR)

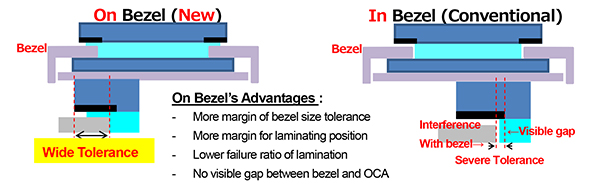

Advantages of “on bezel” bonding over “in bezel” bonding

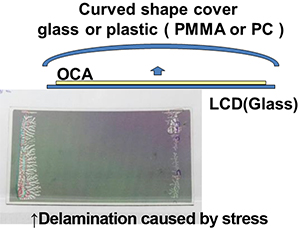

Curved shape display

Curved shape display requires :

- Adhesion power to bear residual stress
- Adhesion power to suppress outgas from plastic cover material
- Softness to absorb the difference of thermal expansion between glass and plastic

BANDO’s OCA provides the solution

- By a thermal curing process to give enhanced adhesion
- By natural softness of Polyurethane
- By easy “reworkability” before curing
