TOPX™
Precision polishing using advanced dispersion processing technology
Features
- Planarization from nano to Angstrom levels

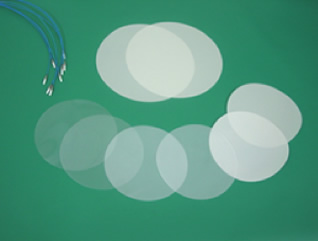

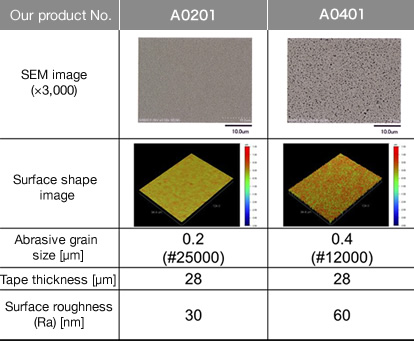

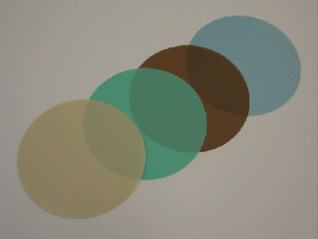

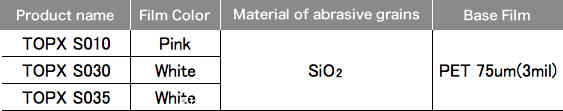

- Film and tape using various abrasives are available: TOPX D (diamond), TOPX A (alumina) and TOPX S (silica)
- Control of the polished surface structure using binder design, advanced particle dispersion and precision coating technology
- Advanced polishing and long service life due to proprietary surface and interface control
Applications

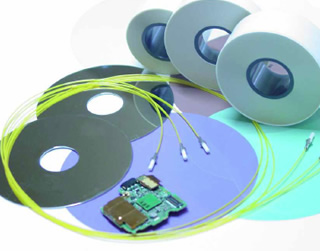

Polishing of optical communication connectors and LCD display components

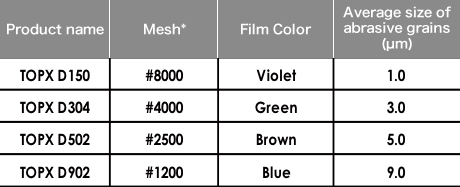

- Lineup
-

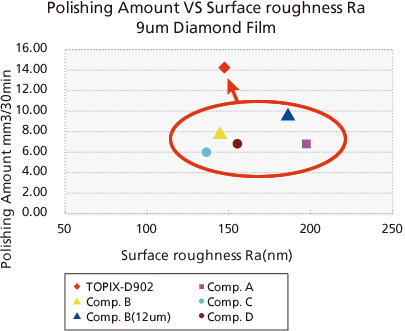

■TOPX D902
Diamond Film 9um
The polishing force is higher than others, and the maintenance of the surface roughness can be expected to be at a similar level.

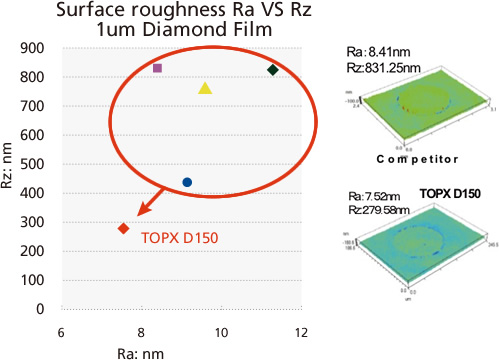

■TOPX D150
Diamond Film 1um
The post-polishing surface roughness is one rank higher, which is expected to contribute to the subsequent finishing process through the reduction of polishing time, for example.

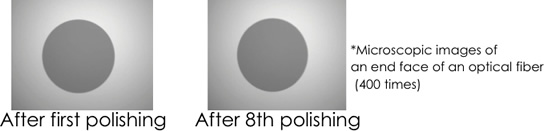

- 1. High polishing capability and high smoothness of post-polishing end face
- 2. Very few particle generation
- 3. High tape adhesiveness of abrasive grains

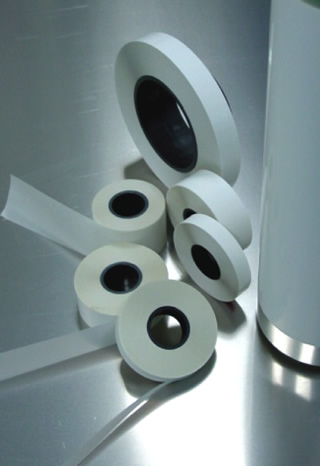

※Tape width: 1/2 inches (12.7 mm), 3.8 mm.
