Heat Carry™ heat-resistant conveyor belt

Heavy duty conveyor belt suitable for transporting high temperature materials

This conveyor belt is suitable for use in areas where the ambient temperature is above 60°C, the material to be conveyed is hot, and the belt surface temperature is 100 to 200°C.

We have a variety of products for medium temperature range applications (surface temperature to 100°C), high temperature range applications (surface temperature to 200°C), and special applications.
Please refer to the downloadable documents for details.

Heat Carry™ heat-resistant conveyor belt

forte

Excellent abrasion resistance and heat aging resistance at medium and high temperatures
Core is designed to minimize performance changes due to heat
Excellent adhesion between cover rubber and core at medium and high temperatures

(product) line-up

adoption (taxonomical) form type
(Belt/Strong)
   N/mm)
Belt Dimensions Belt width (mm)
number of plies core species Cover rubber thickness (mm) Belt thickness
(mm)
Reference weight
(kg/㎡)
350 400 450 500 600
surface underside
heat-resistant Heat Carry 513 160 2 E: Polyester 3.0 1.5 5.6 7.0
250 3 5.0 1.5 8.3 10.2

"✓" is a standard product.
Other types for medium temperature range applications (surface temperature up to 100°C), high temperature range applications (surface temperature up to 200°C), and special applications can also be made to order.

Applications

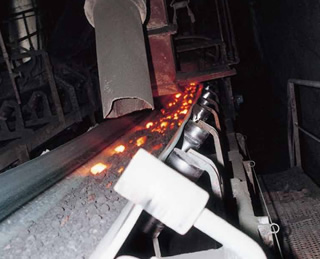

Steel mills (sintered ore, coke, pellets, tailings, etc.)
Cement plant (clinker, cement products, raw materials for blending, dried clay, etc.)
Other (casting sand, etc.)
