Bando Squeegees (Bancolan Squeegees)

We can meet a variety of screen printing needs

As the IT field develops, screen printing requires finer and thinner films, and squeegees, which play an important function in screen printing, are required to meet strict quality requirements. We have an assortment of products for various applications.

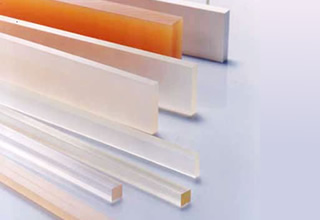

Bando Squeegees (Bancolan Squeegees)

Features

Excellent abrasion and solvent resistance
Excellent elasticity and good adhesion to uneven printed surfaces
Uniform squeegee edges ensure sharp prints.
A wide variety of types are available according to function (Type A: abrasion resistance, Type B, Type U, and Type S: solvent resistance).
Wide variety of types by shape (flat, sword, square, with resin plate)

Lineup

Bandos squeegees are available by function.
Type A: Abrasion resistance (polyurethane rubber)
Type B . . . Solvent resistance (Polyurethane rubber)
U type: Ultra solvent-resistant (polyurethane rubber)
S type: Special solvent resistance (special polymer)
In addition, there are flat squeegees, sword squeegees, square squeegees, and squeegees with resin plates by shape.

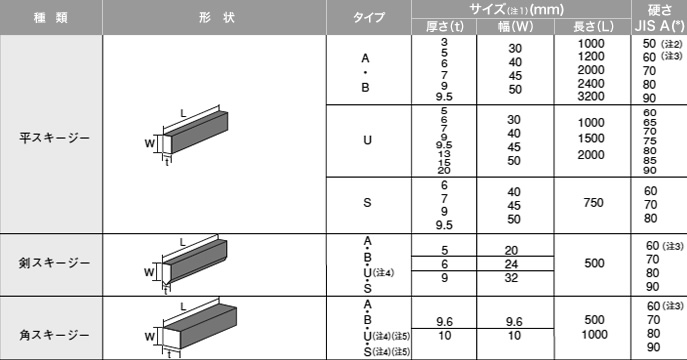

1.Standard specifications

type shape type Size (Note 1)(mm) hardness
JIS A(°)
Thickness (t) Width (W) Length (L)
flat squeegee

3
5
6
7
9
9.5
30
40
45
50
1000
1200
2000
2400
3200
50(Note2)
60(Note3)
70
80
90
U 5
6
7
9
9.5
13
15
20
30
40
45
50
1000
1500
2000
60
65
70
75
80
85
90
S 6
7
9
9.5
40
45
50
750 60(Note3)
70
80
sword squeegee



U

S(Note4)
5 20 500 60(Note3)
70
80
90
6 24
9 32
corner squeegee



U(Note5)

S(Note4)(Note5)
9.6 9.6 500
1000
60(Note3)
70
80
90
10 10

(Note 1) Any combination of size thickness, width, and length can be used for those not underlined.
(Note 2) Only B type is available for 50° hardness.
(Note 3) For Type B hardness 60°, the median hardness is 65°.
(Note 4) S-type hardness 90° sword squeegee and square squeegee are not available.
(Note 5) U type and S type are 9.5 m2. 6 x 9. 6 only.

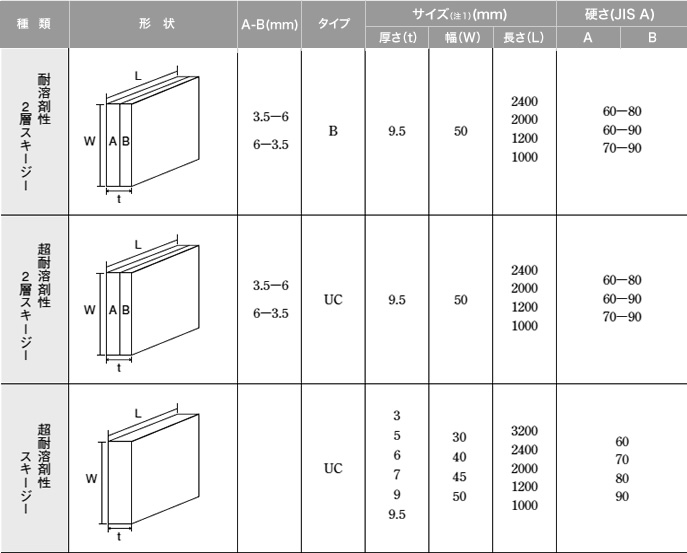

type shape A-B(mm) type Size (Note 1)(mm) Hardness JIS A(°)
Thickness (t) Width (W) Length (L) A B
Super Solvent Resistance
2 Layer Skeezy

3.5-6
6-3. 5
UC 9.5 50 2400
2000
1200
1000
60-80
60-90
70-90
Super Solvent Resistance
squeegee

long vowel mark (usually only used in katakana) UC 3
5
6
7
9
9.5
30
40
45
50
3200
2400
2000
1200
1000
60
70
80
90

■Tone

Hardness JIS A(°) color tone
60° product yellow
70° product blue
80° product green
90° product light brown

2. Special Specifications
We also manufacture products other than standard products. Please contact us for more information.
Storage Precautions
 Store in a well-ventilated place out of direct sunlight.
 Type A squeegee may turn black due to sunlight, etc., but the material will not deteriorate.
■Precautions for use
 If stored in its rolled form, it will become frizzy, so please stretch it out and store it.
 ● Regarding the hardness of squeegee, if the squeegee is left at low temperature for a long time, it may not return immediately even if it is left at room temperature.
  At that time, heat treatment should be performed under the following conditions.
 In case of 50-60°C oven: 60-120 min.
 In the case of an oven at 100-110℃ 30 - 60 min.
