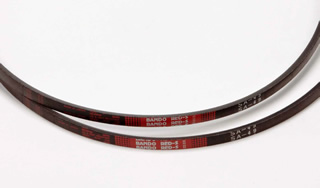

RED-S™ II V-belt for agricultural machinery

Thinner than standard V-belts, this belt has excellent belt life when used with small pulley diameters or in reverse bending. It is also superior in heat resistance and bending resistance, making it suitable for use in agricultural machinery such as combine harvesters.

RED-S™ II V-belt for agricultural machinery

Features

Compared to standard V-belts, this belt has superior belt life when used in reverse bending.
Excellent heat resistance and oil resistance.
This belt is ideal for use in agricultural machinery such as combine harvesters, where the pulley is used from the rear.

Profiles / Size range

Specification example
1. Nomminal No.
2. Belt type

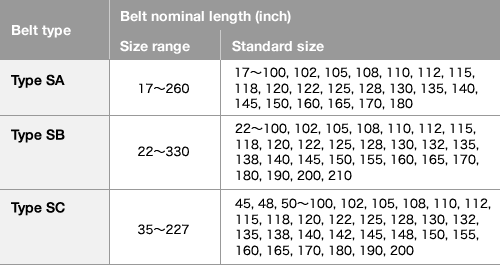

Belt type Belt nominal length (inch)
a x b (mm) Size range Standard size
Type SA 12.7 x 7 17~260 17~100, 102, 105, 108, 110, 112, 115, 118, 120, 122, 125, 128,
130, 135, 140, 145, 150, 160, 165, 170, 180
Type SB 16.7 x 9 22~330 22~100, 102, 105, 108, 110, 112, 115, 118, 120, 122, 125, 128,
130, 132, 135, 138, 140, 145, 150, 155, 160, 165, 170, 180, 190,
200, 210
Type SC 22.2 x 11 35~227 45, 48, 50~100, 102, 105, 108, 110, 112, 115, 118, 120, 122, 125,
128, 130, 132, 135, 138, 140, 142, 145, 148, 150, 155, 160, 165,
170, 180, 190, 200

(Note 1) The nominal numbers indicate the effective pitch length of the belt in inches.

(Note 2) For other sizes than the above, please contact us.
