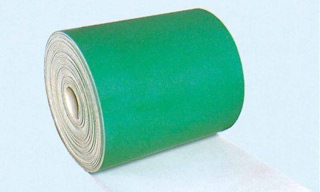

Vinyl 300 Conveyor Belt

White and green light transport type conveyor belt

White and green light transport type conveyor belt with oil resistance.
It is used in the process of conveying materials that contain oil.
*Direct transportation of food products is not allowed.

Vinyl 300 Conveyor Belt

Features

Oil resistant
Green on one side, white on the other for superior non-staining properties
Superior abrasion resistance compared to general color conveyors
*Direct transportation of food products is not allowed.

Lineup

adoption (taxonomical) form type
(Belt/Strong)
   N/mm)
Belt Dimensions

Standard belt width (mm)

number of plies core species Cover rubber thickness (mm) Belt thickness
(mm)
Reference weight
(kg/㎡)
surface underside
For lightweight transport Vinyl 300 belt 100 2 E: Polyester 1.0 1.0 3.7 5.8 300, 350, 400, 450, 500, 600, 700, 750, 800, 900, 1000, 1050, 1200

use

Conveyors for transporting oily materials or materials treated with oil or working conveyors for processes, etc.
*Not suitable for direct transportation of food products.
