Impact Bar AR and Non-Spill
Conveyor belt impact absorbing materials and skirt rubber
Features
- The Non-Spill belt skirt is effective in preventing load spill and dust generation
- Maintenance-free operation
- The belt does not sag between the rollers due to the impact bar, so the load does not spill or generate dust
- Easy installation and replacement
- The rubber hardness of 40° provides high impact absorption and minimizes damage to the belt.
- M = 0.08 to 0.1 coefficient of friction with rubber minimizes belt running resistance and keeps friction low.
Applications
- Impact mitigating material for conveyor belts: Impact Bar AR
- Skirt rubber for conveyor belts: Non-Spill
- Lineup
-

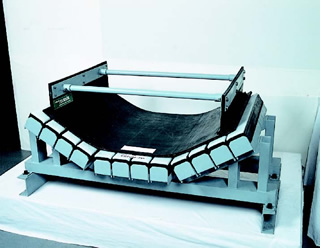

■Impact Bar AR

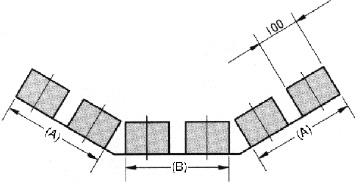

Dimension specification method
Standard specifications and structure
A： Gap in Impact Bar AR Steel cord conveyor belt:
20 mm or less Other conveyor belts: 40 mm or less
Installation specifications
-

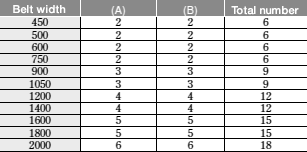

Installed quantity by belt width
A change in the trough angle has no effect on the installed quantity.
- Gap between Impact Bar AR and the conveyor belt
The standard gap is 5 mm without load. -
Installation of the impact roller before and after Impact Bar AR To fit the belt with the trough shape of Impact Bar AR, install the impact roller with the same angle as the trough angle between the tail pulley and Impact Bar AR.
Installation frame
When using the stand frame of the JIS B8803-1990 rollers for belt conveyor, a frame is available for installing Impact Bar AR with a belt width of 450 to 2000 mm and a trough angle of 20, 30, or 45°. When using other stand frames than JIS B8803-1990, we design the frame based on the frame dimensions.

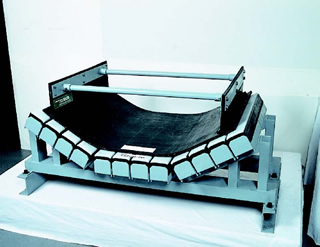

・Installation frame
A frame with a fixed tough angle.

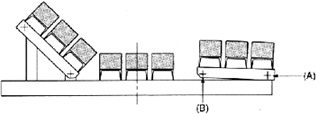

Fold-down frame
A frame that facilitates installation and maintenance by newly installing Sections (A) and (B) of the trough section with hinges so that they can be flattened at the time of repair and replacement.
A frame that facilitates installation and maintenance by newly installing Sections (A) and (B) of the trough section with hinges so that they can be flattened at the time of repair and replacement.
- (Note 1) Do not use the product for a belt temperature of 60°C or higher.
- (Note 2) For use with a belt speed of 120 m/min or more, please consult with us.
■Non-Spill
Skirt rubber for conveyor belt
Material
- Super abrasion-resistant rubber
If you have any request for special rubber such as heat-resistant or oil-resistant rubber, please consult with us.

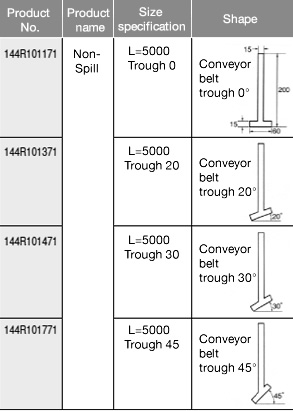

Product type and shape
Product length 5 m
- If you have any request for other dimensions than the above, please consult with us.
