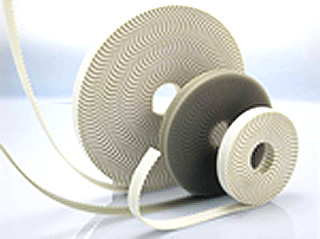

BANCOLLAN Long Synchronous Belts

Long synchronous belts made of polyurethane


  • Wire tension members ensure that there is almost no belt elongation, even on long spans
  • Aramid tension members are used for food conveying applications
  • Different profile shapes can be affixed to the back of the belt by heat fusion
  • Clean transmission and conveying without dispersing rubber dust, so the surrounding area remains clean

Pully CAD Data Download


Two types of Bancollan Long Synchronous Belts are available for long span synchronous transmission and synchronous conveyance in industrial equipment
•Endless (one seam) and Open End

(Endless length is made-to-order within the product range)

  • #
  • #

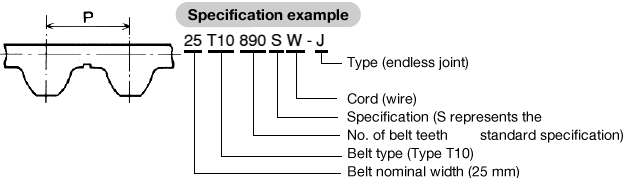

■Endless belt

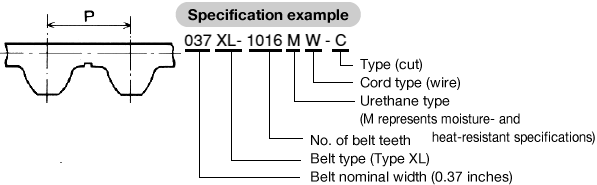

■Open end belt

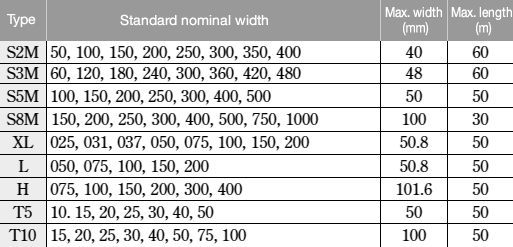

  • The nominal widths indicate the following:
    STS: Belt width (mm) × 10
    Type T: mm
    Types XL, L, H: the width in inches multiplied by a factor of 100
  • We cut and finish the endless belts to a requested length.

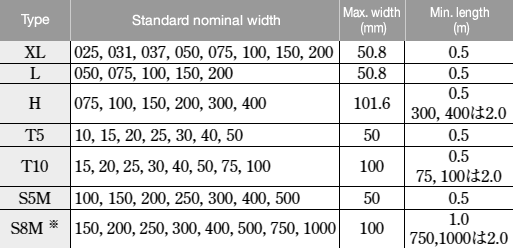

    The belt minimum length for each belt type and width is as follows.

*For information on endless belts, please contact us.

  • Development STORY
