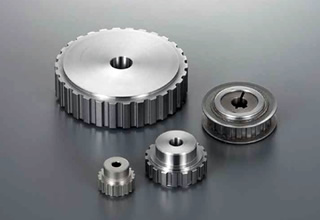

Synchronous Pulleys, TL Synchronous Pulleys (Bushing type)
High-precision toothed pulleys
Features
- ■Plain bore type
・Abundance of sizes; available in special shaft diameters (general specs)
- ■Bushing type
・Use of taper lock (TL) system bushing
・Easy to install and remove from the shaft
Applications
On some machinery, rotation speed can be adjusted by replacing the pulley; on other devices a JIS key may be used to lock the pulley into place
- Lineup
-

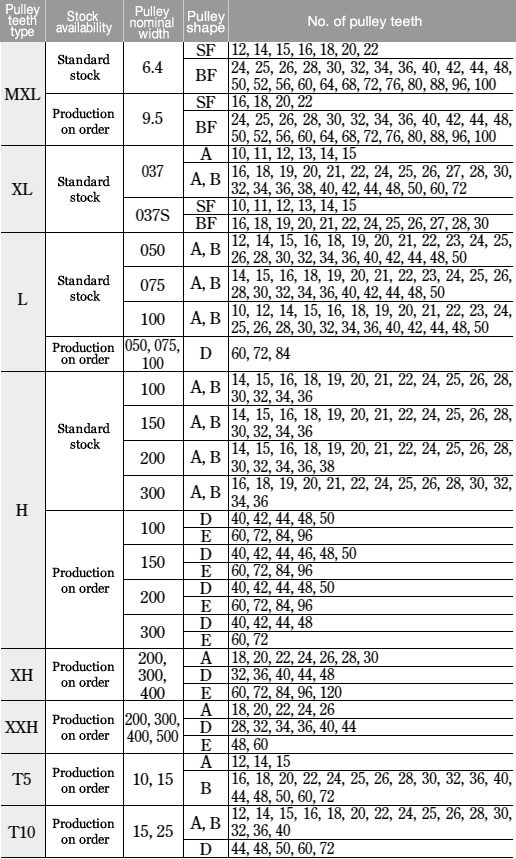

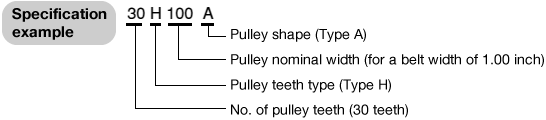

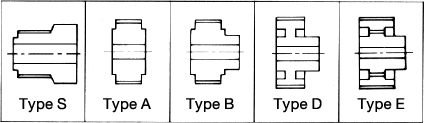

■Machined shaft hole type

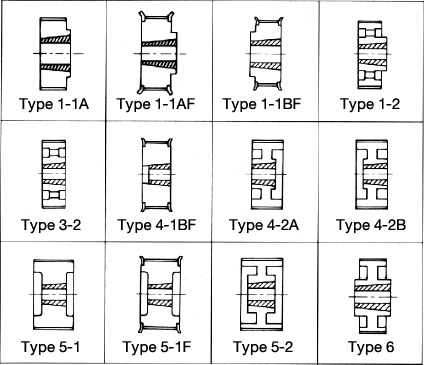

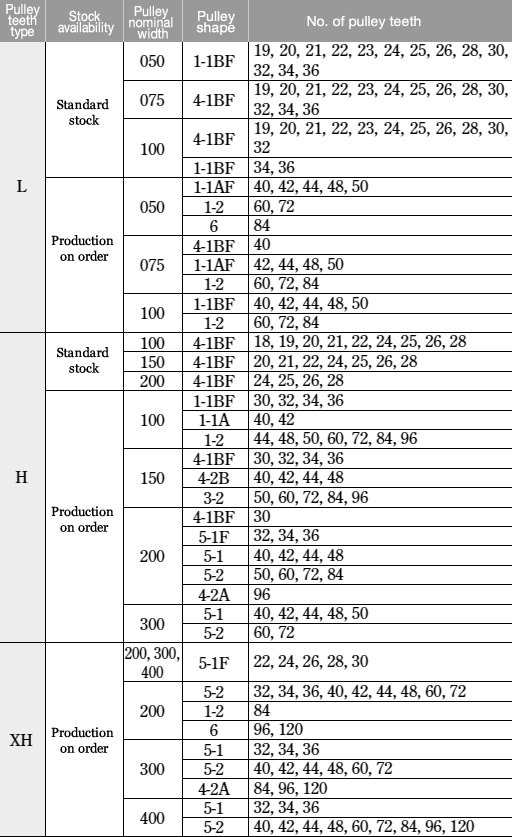

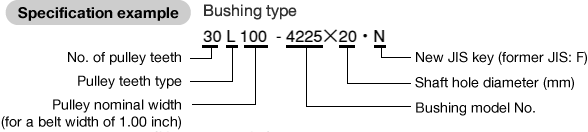

■Bushing type
