Synchronous Pulleys (molded)
Select the suitable material and production type
Features

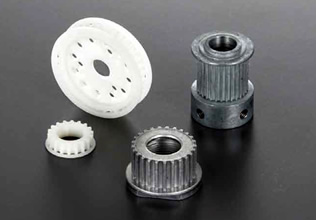

We offer three types of molded Synchronous Pulleys to meet the low-cost needs in office automation equipment and space-saving automated equipment

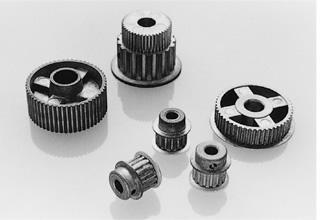

- Synchronous Pulley S (sintered metal)
- Synchronous Pulley D (aluminum, zinc die cast)

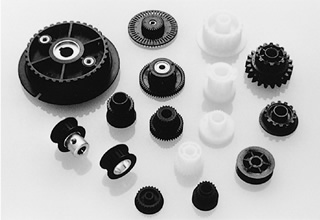

- Synchronous Pulley MT (resin injection)
Applications/specifications
Lightweight and cost-effective use in office and automated equipment
- Lineup
-
- The standard pack includes flanges.
Synchronous Pulley D
(aluminum, zinc die-casting)
Synchronous Pulley MT
(resin injection)
Synchronous Pulley D and Synchronous Pulley
MT are manufactured for an order of 1000
pieces or more per lot.
Please attach a drawing when you place an order.
