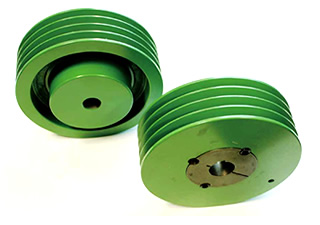

Power Sheave and TL Power Sheave

Power Sheave is a specialized pulley for Power Ace and Power Ace Cog


  • Two standardized Power Sheave pulleys: plain bore or with bushings, depending on the application


Power Ace, Power Ace Cog applications, depending on dimensions, shaft diameter, etc.

  • #
  • #

■Power Sheave (machined shaft hole type)

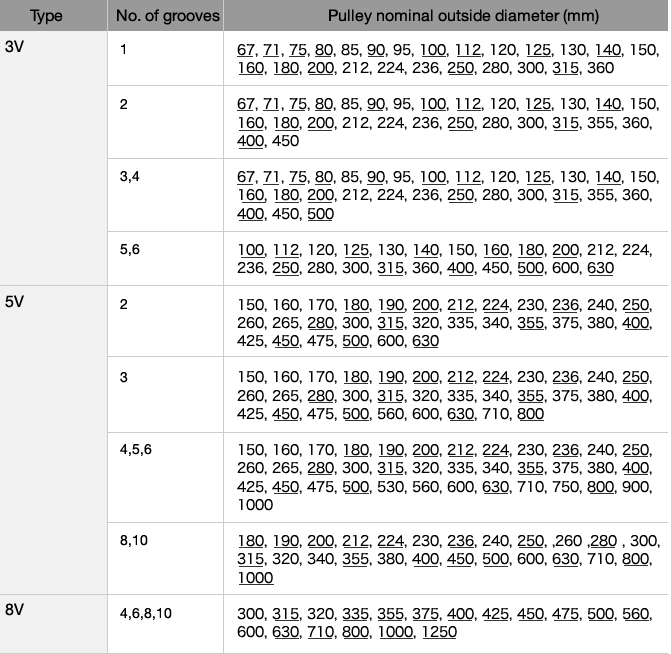

Standard pulley size by type

・The underlined sizes indicate JIS sizes.

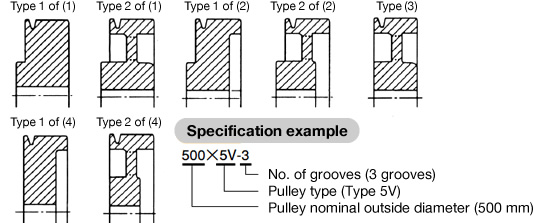

Standard pulley shape

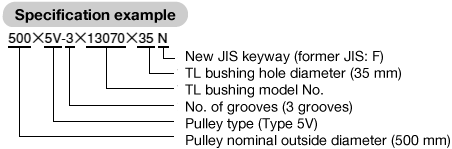

■TL Power Sheave (bushing type)

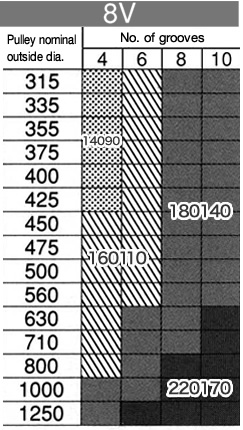

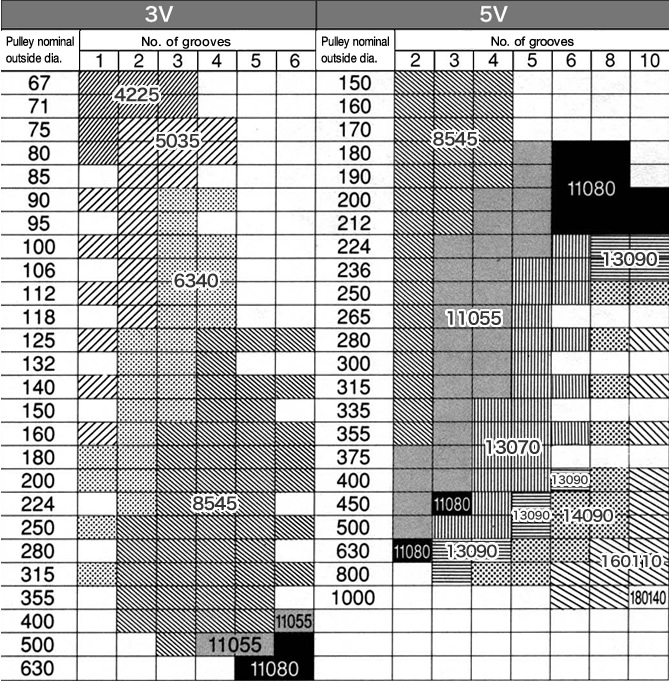

Standard pulley size and applicable TL bushing model No. by type

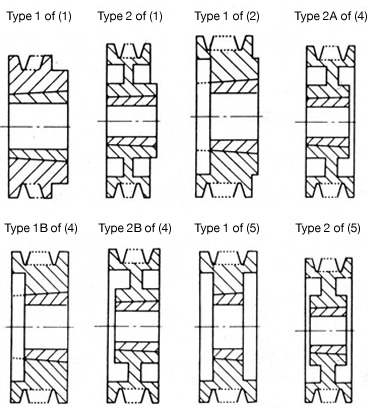

●Standard pulley shape
