ProductsFriction power transmission belts

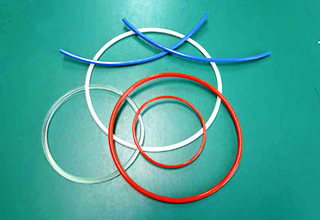

BANCORD™ Round belts and V-belts

Easily joined by heat fusion
Open-ended belts made of a single thermoplastic polyurethane material

VANCORD™ MULBELT and V-BELT are made of polyurethane with excellent abrasion resistance and tear resistance, and are widely used for conveying food products and for driving roller conveyors.

BANCORD™ Round belts and V-belts

Features

Heating allows for easy and strong joints, so you can freely select the belt length you need, regardless of the standard.
No directionality in the cross section allows for complex 3-dimensional transmission such as multi-axis transmission and directional changes by idler pulleys.
Installation can be done without disassembling the machine, reducing the need for tensioning and other adjustments.
VANCORAN™ (polyurethane), which has excellent abrasion and tear resistance, is used and has excellent mechanical properties.

Lineup (Type & Size)

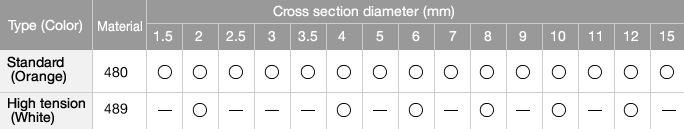

Round belts
Examples of Usage Combination Color tone Cross-sectional diameter (mm) Roll length

General-purpose and
food conveying

#480 Orange (standard)
Translucent
Black
1.5, 2, 2.5, 3, 3.5, 4 200m
5, 6, 7, 8, 9, 10, 11, 12 100m
15 50m
Roller conveyor drive #485N Translucent 3, 4 200m
5, 6 100m
Roller conveyor drive
(Durable, abrasion resistant)
#485T Translucent 4 200m
5, 6 100m
Paper and food conveying
(Rough surface specification)
#485RB Green 3, 4 200m
5, 6, 8 100m
Abrasion resistance
(high load)
#489 White (Standard) 1.5, 2, 2.5, 3, 3.5, 4 100m
5, 6, 7, 8, 9, 10, 11, 12 100m
#490 Translucent
Blue
Red
Green
1.5, 2, 2.5, 3, 3.5, 4 200m
5, 6, 7, 8, 9, 10, 11, 12 100m

Semiconductor Field
(Antistatic)

#494C Black 2, 2.5, 4 200m
5 50m

The #480 (excluding standard products) and #490 are made-to-order. Please contact your Minebea sales company or distributor for information on delivery dates and production lots.

Joint processing is available upon request. Joints are available for circumferences of 125 mm or more for wire diameters up to 2.5 mm, and 50 times or more for wire diameters of 3 mm or more.
(For joint processing of 15 mm wire diameter, please contact our sales company or distributor.)

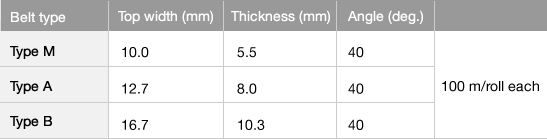

V-belts
Belt type Combination Color tone Upper width (mm) Thickness (mm) Angles (°) Roll length
M type #480 Orange 10.0 5.5 40 100m
#495 White
A type #480 Orange 12.7 8.0 40 100m
#495 White
B type #480 Orange 16.7 10.3 40 100m
#495 White

a. Upper width

b. Thickness

c. Angles

use

Drive and transport applications for automated equipment such as office machines and packaging machines
