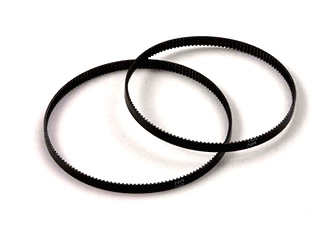

BANCOLLAN™ STS Belts/Synchronous Belts
Synchronous polyurethane belts combine smooth, efficient meshing with high precision for automated equipment
Features
- High torque transmission
Ideal profile for smooth meshing eliminates stress concentrations, with low torque loss at start-up - Oil- and ozone-resistant
Resistant to swelling caused by exposure to oil, and to cracking caused by ozone exposure - Free of rubber dust so peripheral areas remain clean
Applications/specifications
Office automation equipment, precision equipment, automated equipment
- Lineup
-

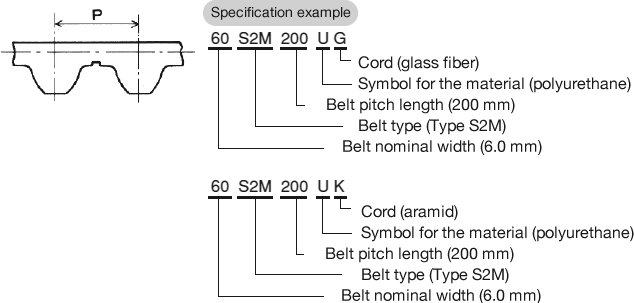

■Bancollan™STS

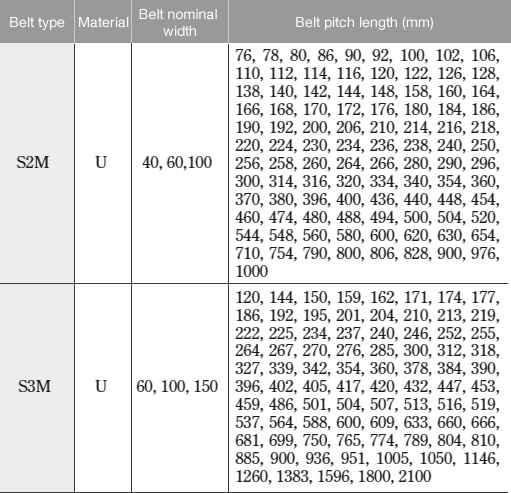

■Standard size
●The nominal widths indicate the widths in millimeters multiplied by a factor of 10.

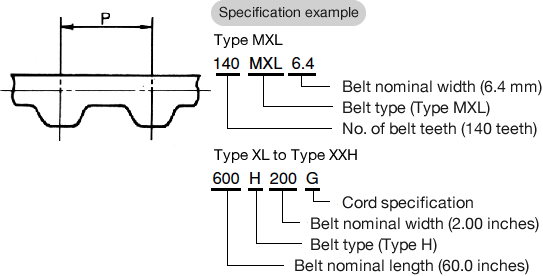

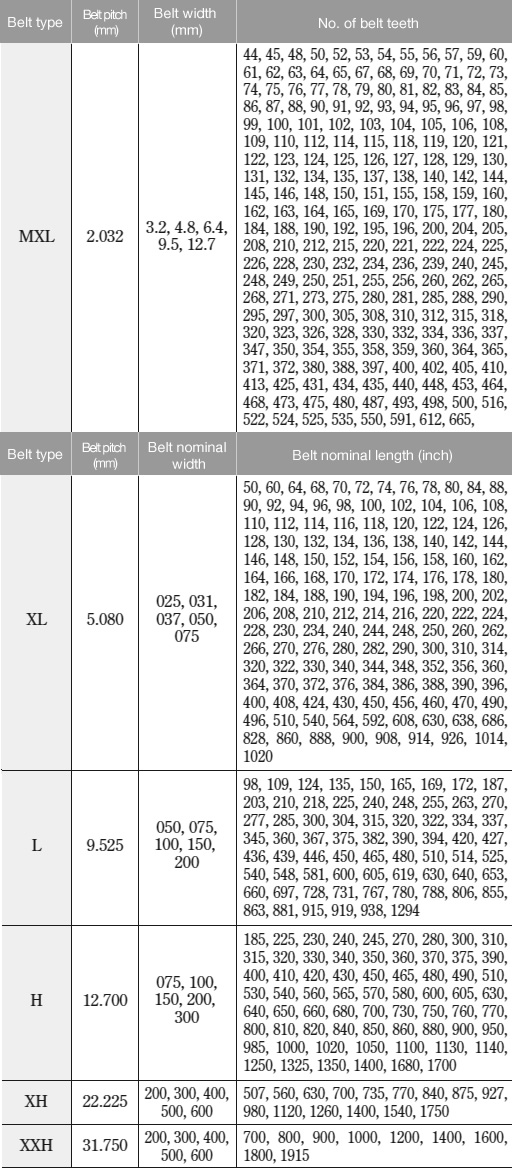

■Synchronous Belt™
- The nominal widths indicate the widths in millimeters for Type MXL and the widths in inches multiplied by a factor of 100 for Types XL to XXH.
- The belt nominal lengths indicate the number of teeth for Type MXL and the lengths in inches multiplied by a factor of 10 for Types XL to XXH.
